Panel Configuration: Single, Double, and Triple Truss Logic

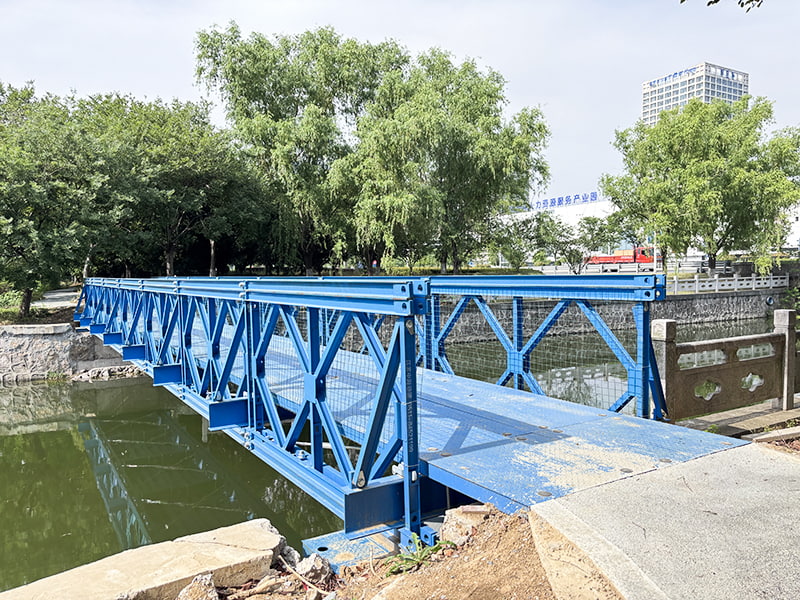

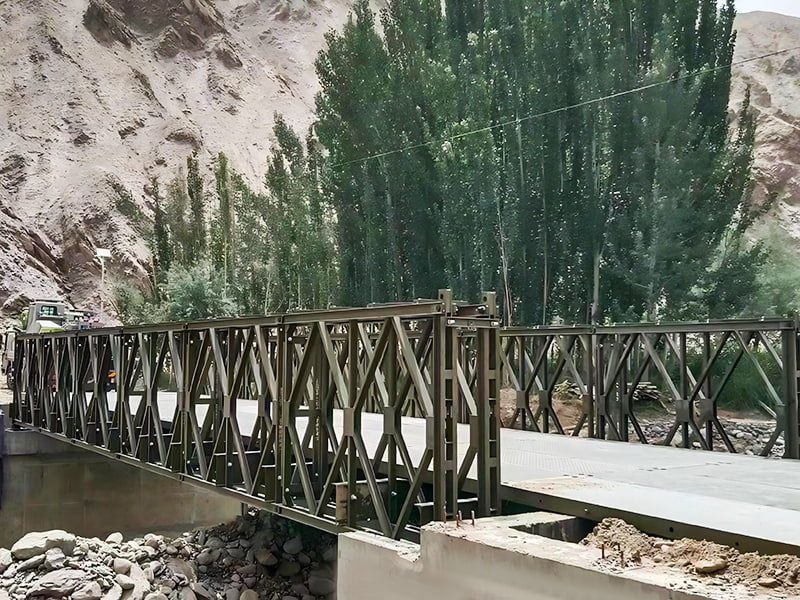

The truss configuration is what actually determines how much weight a span can carry, not the overall length. A single-single (SS) configuration handles light traffic and pedestrian loads over shorter spans, while double-double (DD) or triple-triple (TT) arrangements stack panels vertically and horizontally to push both span length and axle load capacity upward. On our production floor, we build panel sets to the exact configuration a project calls for rather than shipping a fixed catalogue size, because a river crossing with a 40-meter clear span needs a very different truss stack than a rural farm-to-market road with a 15-meter gap.

Deployment Speed on Highways and Rural Corridors

Speed of assembly is usually the first question we get from highway contractors managing a detour, and the second question from a rural roads authority trying to reconnect a washed-out crossing before the next rain season. A panel-bridge crew of 10-15 workers can typically launch a 30-meter span in two to four days using cantilever or nose-launch methods, without heavy cranes standing in the river itself. That difference matters most on a modular bridge for highways project where every extra day of lane closure has a real cost to traffic flow, and on a modular bridge for rural roads where equipment access to the site is limited in the first place.

Launch Methods Commonly Used in the Field

• Cantilever (nose) launching — panels are assembled on the near bank and pushed across, avoiding in-water work
• Crane placement — used where site access allows a mobile crane, generally the fastest for shorter spans
• Rolling on temporary piers — for longer multi-span crossings that need intermediate support

Jiangsu Zhonghai Bridge Equipment Co., Ltd builds panel sets and connecting hardware to consistent tolerances so that field crews aren't fighting mismatched bolt holes or bent chords during launch — a small manufacturing detail that has an outsized effect on how many hours a crew actually spends on site.

River Crossings and Industrial Sites: Different Loads, Different Decks

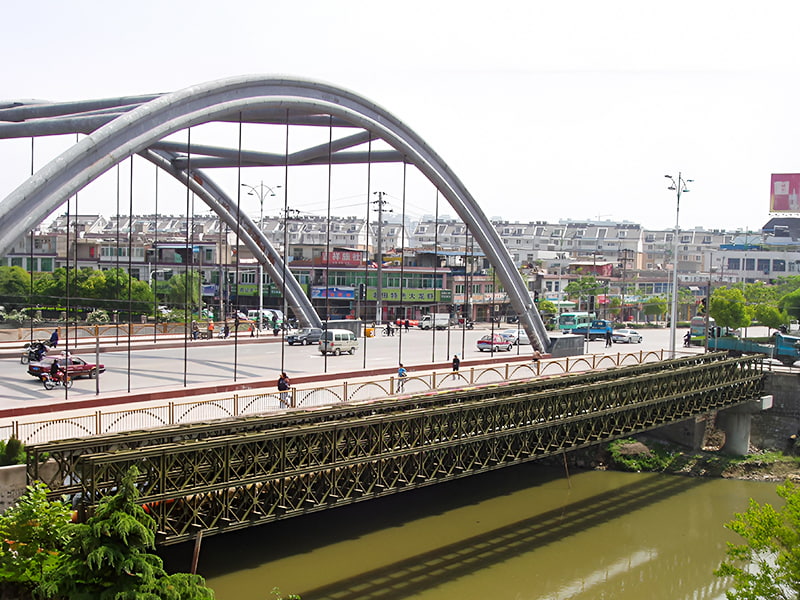

A bailey bridge for river crossing generally answers to seasonal water levels and scour around the abutments, so pier foundation work and clearance above flood stage tend to drive the design more than the panel truss itself. A modular bridge for industrial projects, on the other hand, is usually sized around a known, repeated axle load — mining haul trucks, mobile cranes, or plant machinery moving between fixed points — which makes deck plank thickness and running surface wear the bigger design conversation. From remote mountain regions to coastal marine climates, from rapid emergency deployment to permanent infrastructure, Zhonghai's panel and deck combinations are put together to match what a specific site actually demands rather than a one-size answer.

Deck Options and What They're Typically Used For

1. Steel deck panels — high wear resistance, common on industrial haul routes with repeated heavy traffic
2. Timber decking on steel stringers — lighter, faster to install, often used on rural and temporary crossings
3. Composite or orthotropic panels — balance weight and durability for medium-traffic river crossings

Coastal marine climates bring their own wear pattern — salt exposure accelerates corrosion at connection points long before the steel itself fatigues, which is one reason panel finishing and hardware selection are treated as separate decisions from the truss design.

Putting Together a Working Modular Bridge Solution

Choosing a workable modular bridge solution is really a sequence of decisions rather than a single spec sheet: clear span, expected axle load, available assembly footprint on either bank, and whether the crossing is meant as a temporary detour or a structure that stays in place for years. Getting the sequence backwards — picking panel count before confirming pier spacing, for example — is the most common reason a project runs into rework on site. Our factory operates with advanced automation and standardized workflows, enabling us to produce high-strength modular bridge systems built for exactly this kind of decision sequence, so the panel set that leaves the plant already matches the site survey rather than needing field modification.

A Practical Sequence for Sizing a Project

• Confirm clear span and any intermediate pier locations from the site survey
• Define the governing load case — highway traffic class, industrial axle weight, or pedestrian/light-vehicle use
• Match truss configuration and deck type to that load case rather than defaulting to the largest available panel
• Plan the launch method around bank access and whether in-water work is possible

Zhonghai is not only a manufacturer — the goal on each of these projects is to work through that sequence with the client as a solutions provider, helping build connections that are safer and faster to put in place, whether the end use is a rural road, an industrial site, or a highway crossing meant to carry traffic for the long term.

Frequently Asked Questions

How long does a typical modular bridge last before major maintenance?

It depends heavily on climate and traffic loading, but a well-maintained panel bridge with proper corrosion protection commonly serves for decades before major component replacement is needed, with periodic bolt and pin inspection along the way.

Can the same panel system be reused after a temporary crossing is no longer needed?

Yes — this is one of the practical advantages of a bolted panel system over a cast structure. Panels, transoms, and chords can be disassembled and redeployed at another site, which is why many rural road and emergency-response programs keep a rotating inventory rather than building each crossing new.

What's the difference between a permanent installation and a temporary detour bridge?

The panels and connection hardware can be identical; the difference is mainly in foundation work. A permanent crossing typically sits on concrete abutments and piers, while a temporary detour may use timber cribbing or steel bearing pads that can be removed once the permanent structure reopens.

Do industrial sites need a different maintenance routine than road bridges?

Generally yes, mainly because of load repetition — a haul road crossing sees far more load cycles per day than a rural road, so deck wear and connection tightness tend to need more frequent checks even though the panel design itself is the same family of structure.
